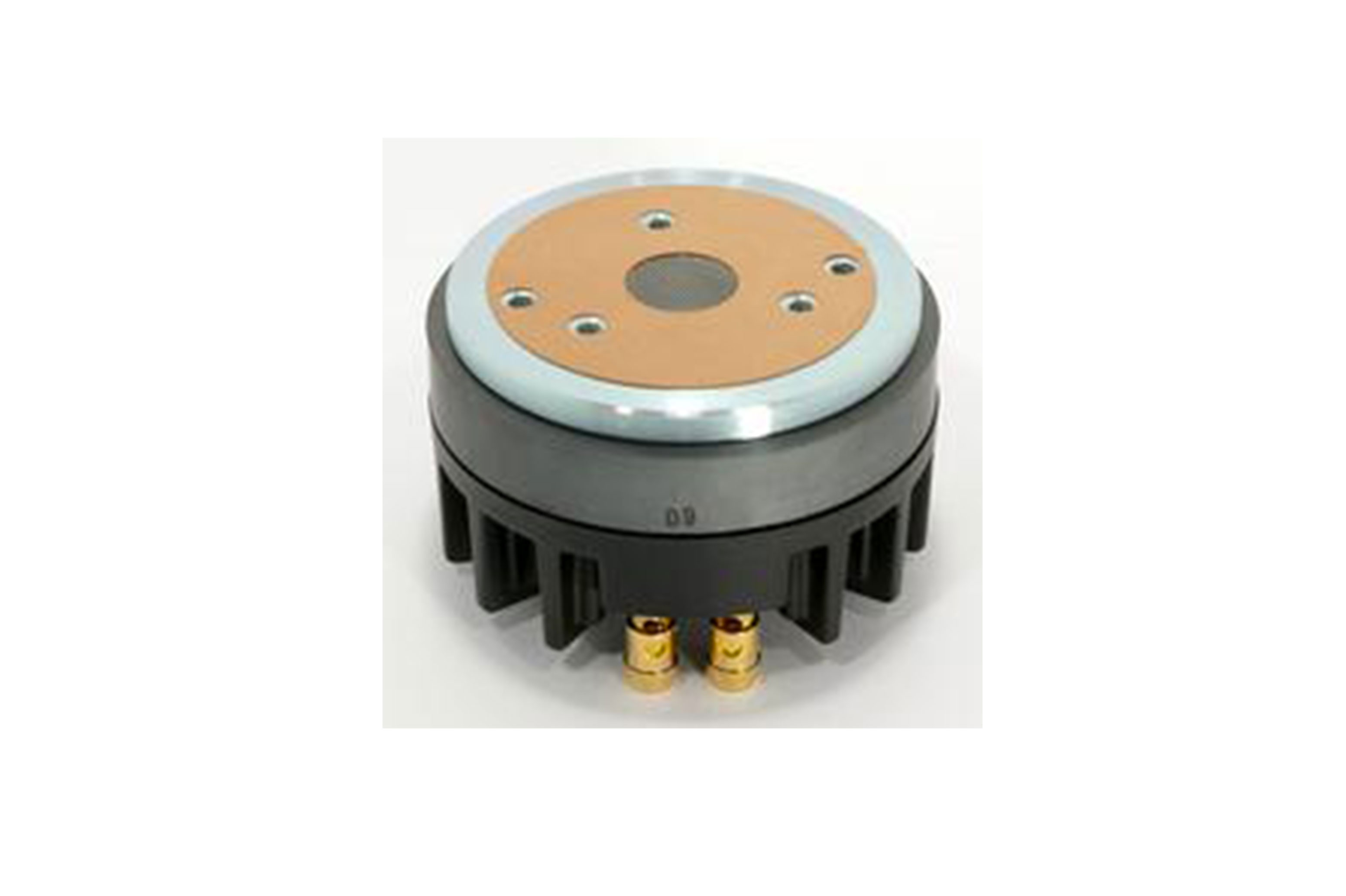

HORN MIDRANGE 1'' VISATON DR 45 N
Prezzo
399,00 €
DISPONIBILE SU ORDINAZIONE
Codice
DR45N
Udv
PZ
Brand
Visaton
Categoria
ALTOPARLANTI
Product Type
HORNS
Descrizione prodotto
Il dirver Visaton Dr45N ha la cupola in titanio, in combinazione con il sistema di tromba esponenziale M300. E' un driver ad alta efficienza ed a tenuta di alta potenza. La risposta in frequenza è molto lineare. E' un prodotto utilizzabile anche per usi professionali
Technical Data:
Nominal power handling with high pass 100 W (12 dB/Okt.; 1000 Hz)
Peak power handling with high pass 150 W (12 dB/Okt.; 1000 Hz)
Nominal impedance Z 8 Ohm
Frequency response 500–12000 Hz
Mean sound pressure level 102 dB (1 W/1 m)
Resonance frequency fs 600 Hz
Magnetic induction 1,55 T
Magnetic flux 90 µWb
Voice coil diameter 40 mm
Net weight 2,8 kg
D.C. resistance Rdc 6,2 Ohm
Inductance of the voice coil L 0,1 mH
