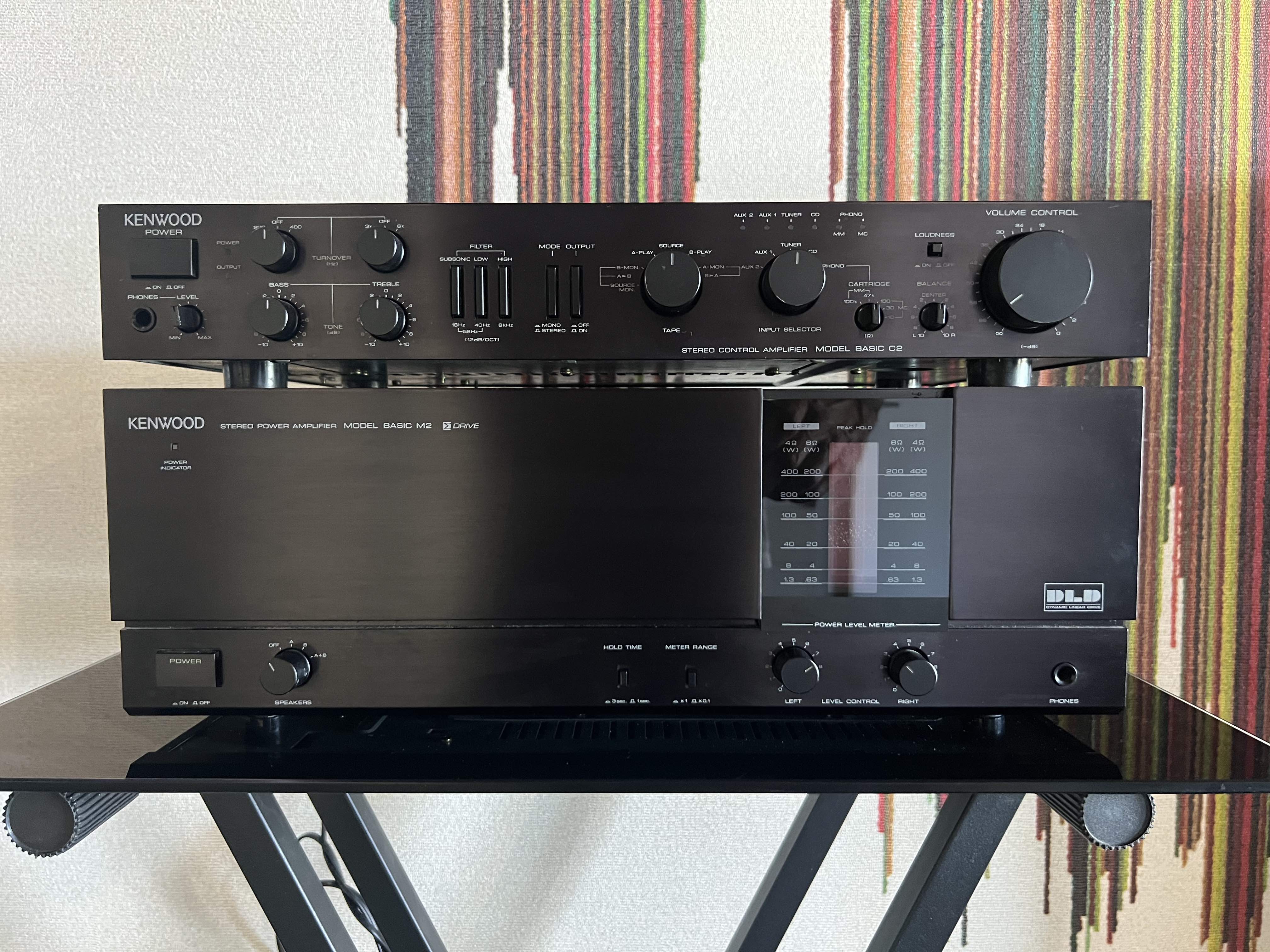

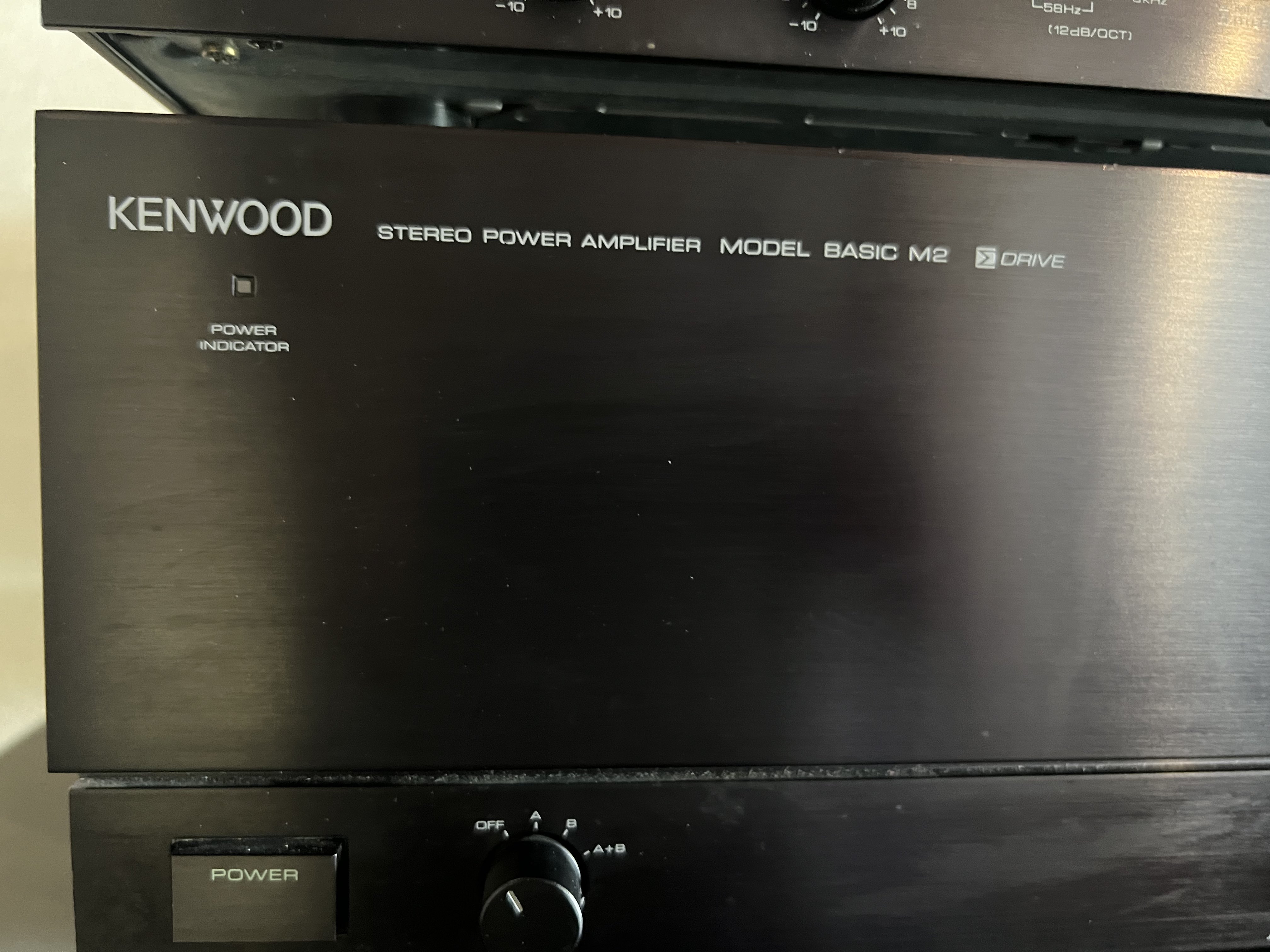

kenwood pre basic c2 + finale kenwood basic m2
Bellissima acoppiata anni 80 funzionanti in buone condizioni. disponibili
Manufacturer: Kenwood
Model: Basic C 2
Type: Preamplifier
Years of manufacture: 1983 - 1990
Made in: Japan
Color: Black
Remote control: -
Power consumption: 12 W
Dimensions: 440 x 80 x 320 mm (WxHxD)
Weight: 4.7 kg
Original price approx.: 998 DM

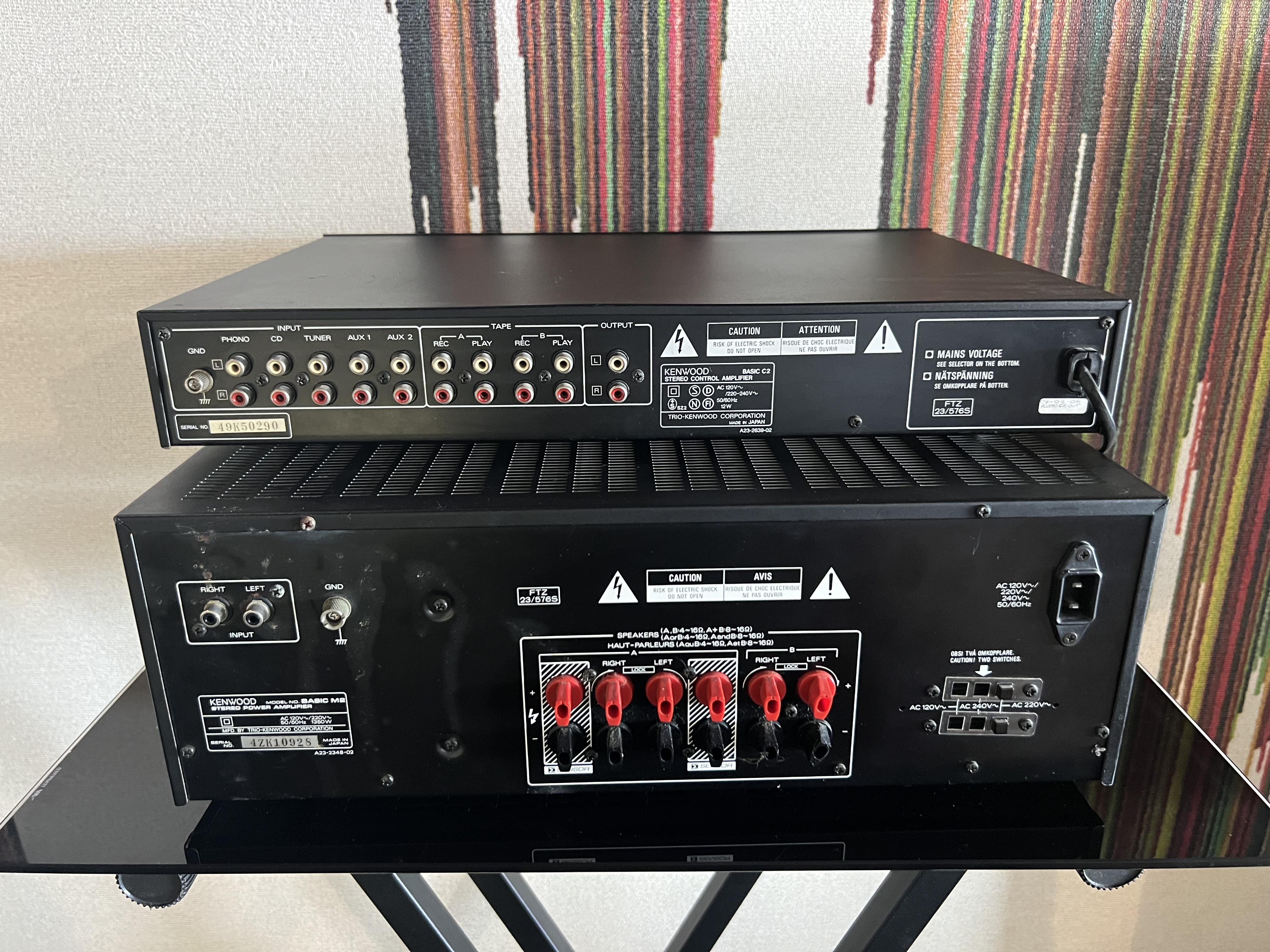

Connections
Number of inputs:
Phono MM: 2.5 mV / 47 kOhm, 100 kOhm (switchable), max. 200 mV.
Phono MC: 0.2 mV / 10 Ohm, 30 Ohm, 100 Ohm(switchable), max. 5 mV
CD: 150 mV /47 kOhm Tuner: 150 mV /47 kOhm AUX 1, 2: 150 mV /47 kOhm
Tape Play 1,2 : 150 mV /47 kOhm
Number of outputs: 3
Tape Rec 1, 2: 150 mV / 220 Ohm
Pre Out: 1 V, 100 Ohm
Specifications
Frequency response:
Phono MM & MC: 20 Hz - 20 kHz, - 0.3 dB
CD, AUX, TUNER, TAPE: 1 Hz - 350 kHz, -3 dB Distortion factor:
Phono MM & MC: 20 Hz - 20 kHz, 0.002 %
CD, AUX, TUNER, TAPE: 20 Hz - 20 kHz, 0.001 % at 1 V Signal-to-noise ratio:
Phono MC: 70 dB
Phono MM: 88 dB
CD, AUX, TUNER, TAPE: 110 dB
Stereo channel separation:

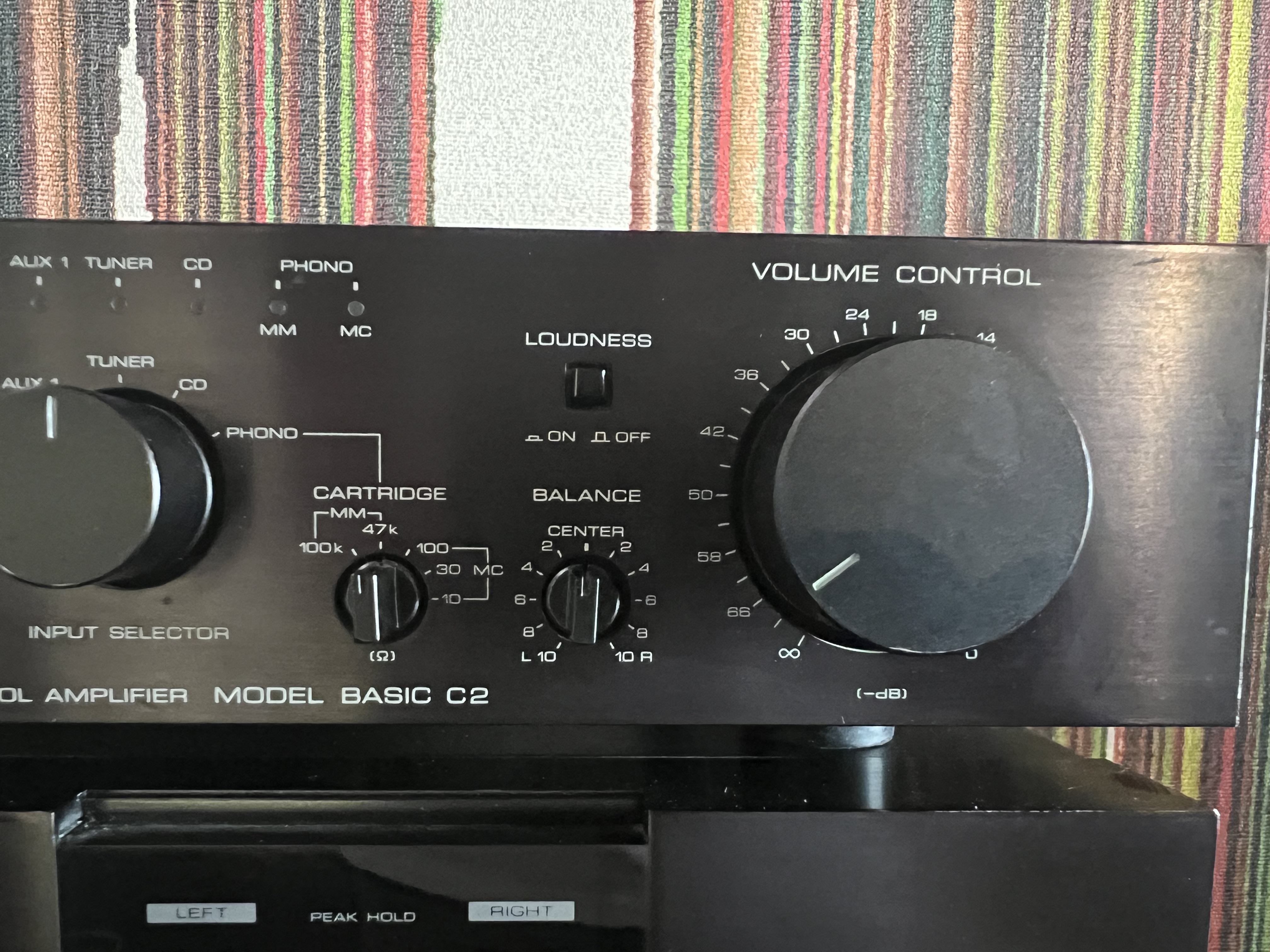

Tone control
Bass: 200/400Hz/off, ± 10 dB Treble: 3kHz/6kHz/off, ± 10 dB
Loudness: switchable
Volume at -30 dB: 100 Hz, 6 dB Volume at -40 dB: 100 Hz, 9 dB
High Filter: 8 kHz
Subsonic Filter: 18Hz, 12 dB/Octave
Low Filter: 40Hz, 58Hz, 12 dB/Octave
Mute: switchable (headphones remain on)
Direct/Line-Straight: yes, if tone control is set to "off
Rise time: 1.0 us
