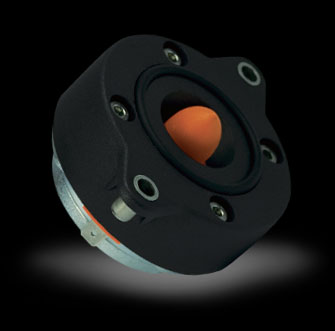

DRIVER FAITAL HF102

NOMINAL SPECIFICATIONSThroat Diameter    25,4 mm (1 in)
Overall Diameter    91 mm (3.58 in)
180° Mounting Holes Diameter (2xM6)    76 mm (2.99 in)
Depth    43 mm (1.69 in)
Net Weight    370 g (0.82 lb)
Shipping Box    147x130x82 mm (5.79x5.12x3.23 in)
Shipping Weight    450 g (0.99 lb)


TECHNICAL PARAMETERS


Nominal Impedance    8 ohm
Minimum Impedance    6.6 ohm
Nominal Power Handling *    30 W
Maximum Power Handling **    60 W
Minimum Crossover Frequency ***    2.6 kHz
Sensitivity (1W/1m) ****    107 dB
Frequency Range    1.8÷20 kHz
Voice Coil Diameter    26 mm (1.02 in)
Winding Material    Copper Clad Aluminium
Former Material    Kapton
Diaphragm Material    Ketone Polymer
Winding Depth    1.7 mm (0.07 in)
Magnetic Gap Depth    2 mm (0.08 in)
Flux Density    1.3 T
Re    6 ohm
Phase Plug Design    Annular
