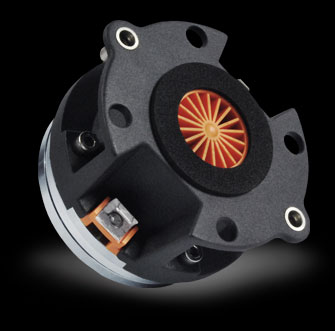

DRIVER FAITAL HF104

NOMINAL SPECIFICATIONS

Throat Diameter    25,4 mm (1 in)
Overall Diameter    91 mm (3.58 in)
180° Mounting Holes Diameter (2xM5)    77.5 mm (3.05 in)
Depth    51 mm (2.01 in)
Net Weight    850 g (1.87 lb)
Shipping Box    98x90x64 mm (3.86x3.54x2.52 in)
Shipping Weight    880 g (1.94 lb)

TECHNICAL PARAMETERS


Nominal Impedance    8 ohm
Minimum Impedance    6.9 ohm
Nominal Power Handling *    40 W
Maximum Power Handling **    80 W
Minimum Crossover Frequency ***    1.7 kHz
Sensitivity (1W/1m) ****    108 dB
Frequency Range    0.8÷20 kHz
Voice Coil Diameter    38 mm (1.5 in)
Winding Material    Copper Clad Aluminium
Former Material    Kapton
Diaphragm Material    Ketone Polymer
Winding Depth    2.1 mm (0.08 in)
Magnetic Gap Depth    2.6 mm (0.10 in)
Flux Density    1.85 T
Re    5.5 ohm
Phase Plug Design    Radial
