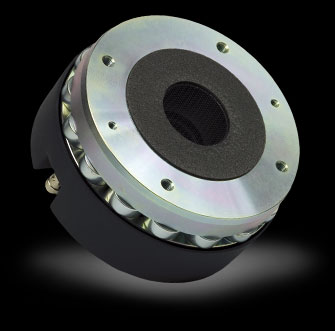

DRIVER FAITAL HF140

NOMINAL SPECIFICATIONS

Throat Diameter    35.6 mm (1.40 in)
Overall Diameter    130.5 mm (5.14 in)
90° Mounting Holes Diameter (4xM6)    102 mm (4.02 in)
Depth    62 mm (2.44 in)
Net Weight    2.9 Kg (6.40 lb)
Shipping Box    185x170x122 mm (7.28x6.69x4.80 in)
Shipping Weight    3.1 Kg (6.83 lb)


TECHNICAL PAREMETERS


Nominal Impedance    8 ohm
Minimum Impedance    6.3 ohm
Nominal Power Handling *    80 W
Maximum Power Handling **    160 W
Minimum Crossover Frequency ***    0.9 kHz
Sensitivity (1W/1m) ****    109 dB
Frequency Range    0.5÷18 kHz
Voice Coil Diameter    75 mm (2.95 in)
Winding Material    Copper Clad Aluminium
Former Material    Kapton
Diaphragm Material    Titanium
Winding Depth    2.45 mm (0.10 in)
Magnetic Gap Depth    2.80 mm (0.11 in)
Flux Density    1.8 T
Re    5.6 ohm
Phase Plug Design    Annular
