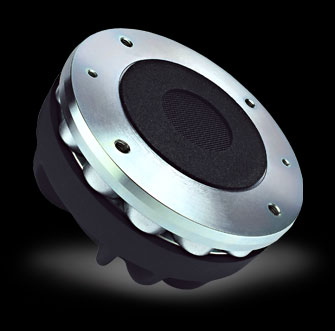

DRIVER FAITAL HF144

THIELE SPECIFICATIONS

Throat Diameter    35.6 mm (1.40 in)
Overall Diameter    123 mm (4.84 in)
90° Mounting Holes Diameter (4xM6)    102 mm (4.02 in)
Depth    63.5 mm (2.5 in)
Net Weight    2.1 Kg (4.62 lb)
Shipping Box    185x170x131 mm (7.28x6.69x5.51 in)
Shipping Weight    2.6 Kg (5.73 lb)

TECHNICAL PARAMETERS


Nominal Impedance    8 ohm
Minimum Impedance    6.8 ohm
Nominal Power Handling *    80 W
Maximum Power Handling **    160 W
Minimum Crossover Frequency ***    0.9 kHz
Sensitivity (1W/1m) ****    110 dB
Frequency Range    0.7÷18 kHz
Voice Coil Diameter    65 mm (2.56 in)
Winding Material    Copper Clad Aluminium
Former Material    Kapton
Diaphragm Material    Ketone Polymer
Winding Depth    3 mm (0.12 in)
Magnetic Gap Depth    4.2 mm (0.17 in)
Flux Density    1.7 T
Re    5.5 ohm
Phase Plug Design    Annular
