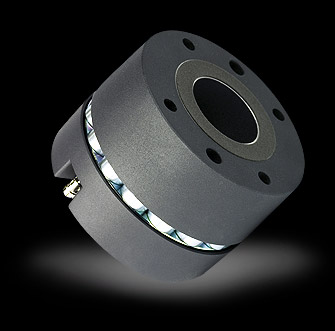

DRIVER FAITAL HF200

NOMINAL SPECIFICATIONSThroat Diameter    50.8 mm (2 in)Overall Diameter    130.5 mm (5.14 in)90° Mounting Holes Diameter (4xM6)    102 mm (4.02 in)Depth    95 mm (3.74 in)Net Weight    3.2 Kg (7.05 lb)Shipping Box    185x170x122 mm (7.28x6.69x4.80 in)Shipping Weight    3.4 Kg (7.49 lb)      TECHNICAL PARAMETERSNominal Impedance    8 ohmMinimum Impedance    5.8 ohmNominal Power Handling *    80 WMaximum Power Handling **    160 WMinimum Crossover Frequency ***    0.9 kHzSensitivity (1W/1m) ****    108 dBFrequency Range    0.5÷18 kHzVoice Coil Diameter    75 mm (2.95 in)Winding Material    Copper Clad AluminiumFormer Material    KaptonDiaphragm Material    TitaniumWinding Depth    2.45 mm (0.10 in)Magnetic Gap Depth    2.80 mm (0.11 in)Flux Density    1.8 TRe    5.6 ohmPhase Plug Design    Annular
