Connettore Wbt-0710 pole terminal, in puro rame con placcatura in oro 24k
Prezzo
69,00 €
CONSEGNA IN 4 GIORNI
Codice
wbt-0152 Ag
Udv
PZ
Brand
WBT
Categoria
COMPONENTI
Product Type
CONNETTORI
Datasheet
Descrizione prodotto

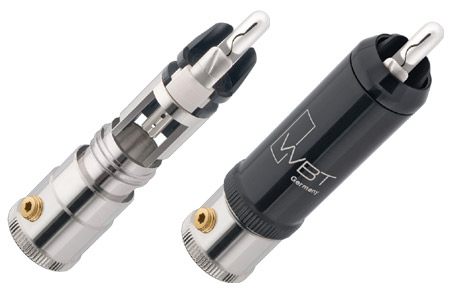

Nextgen™ RCA connector Signature, unico conduttore di segnale realizzato in raffinato argento, non introduce distorsioni e non è affetto da correnti parassite, larghezza di banda fino a 200MHz, eccellente schermatura per i campi elettromagnetici, intaglio nel pin centrare per un perfetto contatto interno, ottima trasmissione del segnale grazie al meccanismo di bloccaggio brevettato WBT, connessione a saldare, supporta cavi con diametro fino a 10.8mm, serracavo con vite Torx T.6, bussola di serraggio colore nero |
A new (2007) version of the WBT-0150 connector. Improved to utilize the nextgen™ insert. Contacts utilize passivated pure fine silver. The body is constructed with brass and then platinum plated to give a nice asthetic appeal. The central contact assembly is made of Ultramid® and the negative contact uses Dyneon™. The barrel is comprised of brass and finished in a glossy piano black color. A characteristic impedance of 75 ohms makes this a perfect match for digital audio and video. The maximum size conductor that can be used is 1.5mm² / 16-17 AWG. Maximum diameter of cable with dielectric is 9.1-11.3 mm² / 0.358-0.445 inches². The barrel is offered in black only. |
