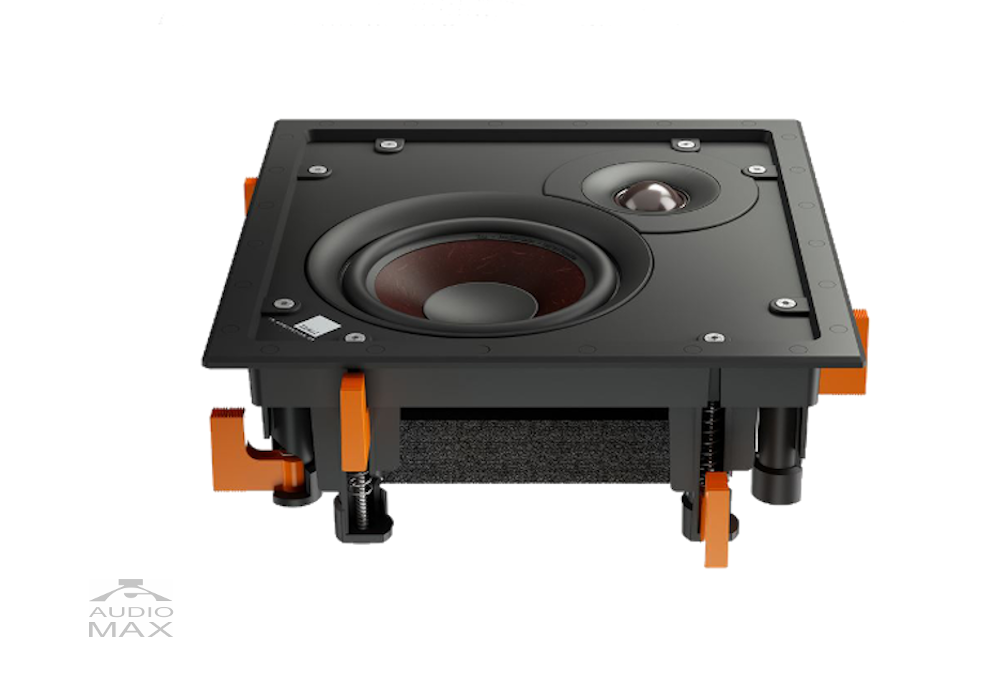

DALI H-50

DALI PHANTOM H-50 SPECS

Product series PHANTOM
Frequency Range (+/-3 dB) [Hz] 52 - 25,000
Sensitivity (2,83 V/1 m) [dB] 88.0
Nominal Impedance [ohms] 6
Maximum SPL [dB] 105
Recommended Amplifier Power [W] 30 - 120
Crossover Frequency [Hz] 2,450
High frequency driver, Quantity 1 x 28 mm
High frequency driver, Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 1 x 5,25"
Low frequency driver, Diaphragm type Wood Fibre Cone
Enclosure type Open back
Recommended Working Volume 5 - 25 L
Connection Input Single Wire

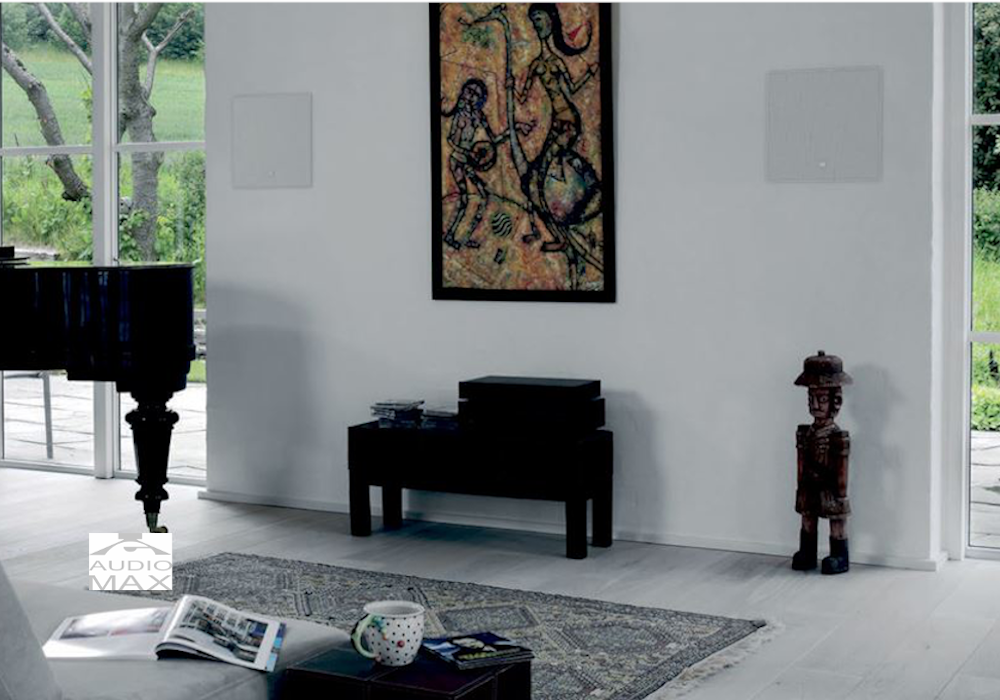

Recommended Placement In-Wall
In-Ceiling
Dimensions (HxWxD) [mm] 275 x 275 x 95
Cut-Out Dimensions (HxWxD) [mm] 239 x 239
Accessories Included 3mm Allen Key
Cut-Out Template
Logo Badge
Manual
Weight [kg] 2.2
Recommended Volume [litre] 30 - 120
