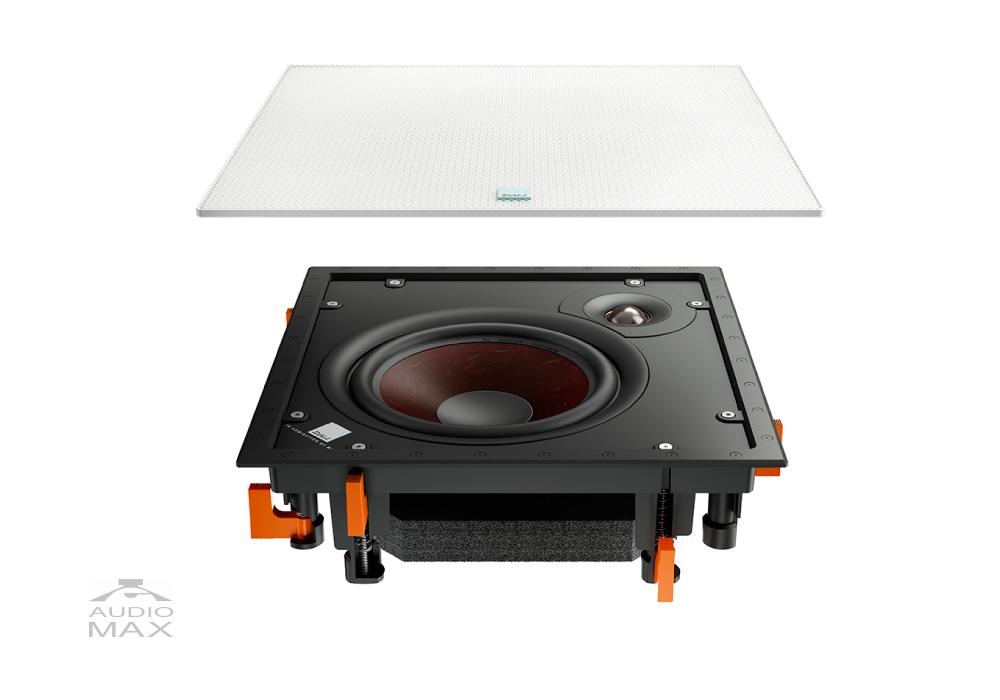

DALI H-60

DALI PHANTOM H-60 SPECS

Product series PHANTOM
Frequency Range (+/-3 dB) [Hz] 51 - 25,000
Sensitivity (2,83 V/1 m) [dB] 89.0
Nominal Impedance [ohms] 6
Maximum SPL [dB] 107
Recommended Amplifier Power [W] 30 - 150
Crossover Frequency [Hz] 1,900
High frequency driver, Quantity 1 x 28 mm
High frequency driver, Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 1 x 6½"
Low frequency driver, Diaphragm type Wood Fibre Cone
Enclosure type Open back
Recommended Working Volume 10 - 35 L
Connection Input Single Wire

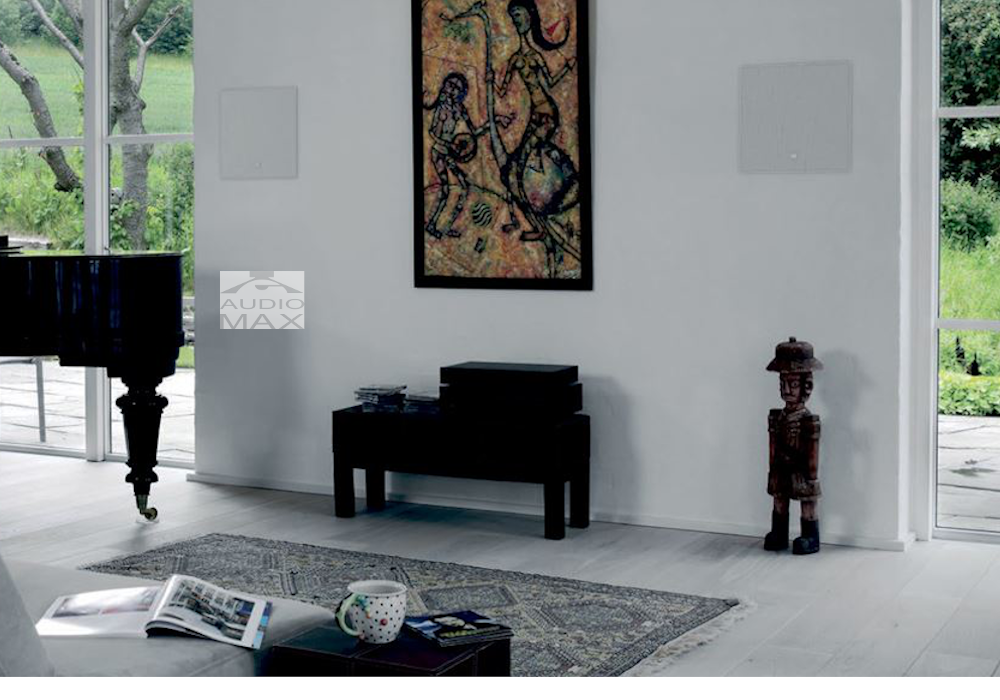

Recommended Placement In-Wall
In-Ceiling
Dimensions (HxWxD) [mm] 300 x 300 x 95
Cut-Out Dimensions (HxWxD) [mm] 264 x 264
Accessories Included 3mm Allen Key
Cut-Out Template
Logo Badge
Manual
Weight [kg] 2.60
Recommended Volume [litre] 10 - 35
