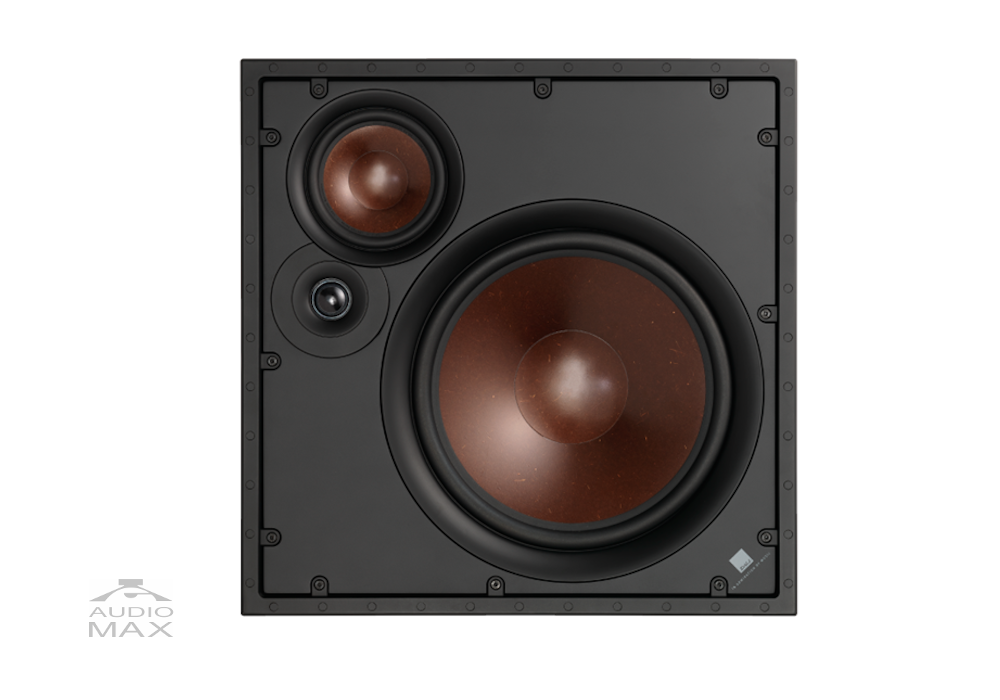

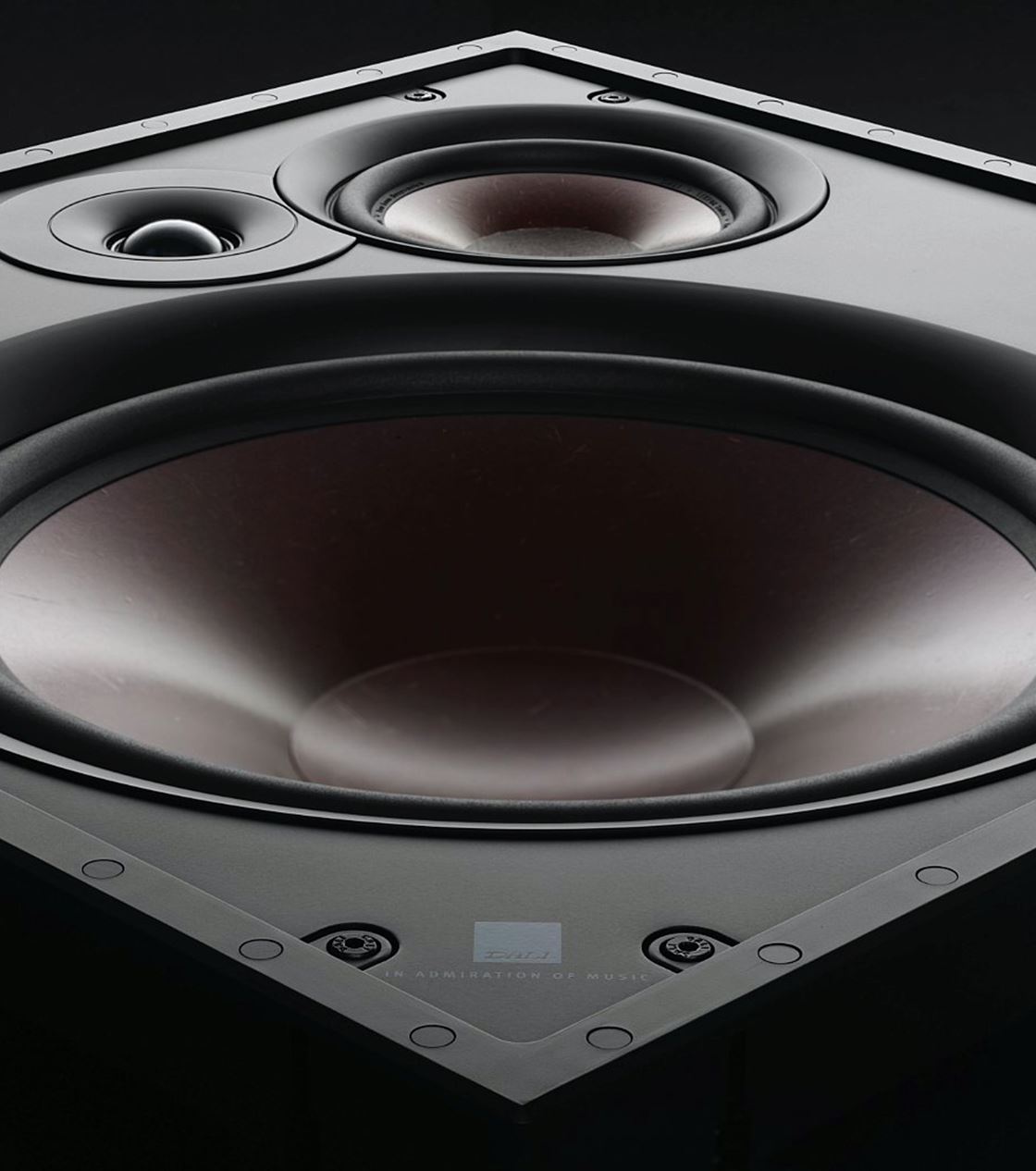

DALI H120

DALI PHANTOM H-120 SPECS

Product series PHANTOM
Frequency Range (+/-3 dB) [Hz] 32 - 25,000
Sensitivity (2,83 V/1 m) [dB] 90.0
Nominal Impedance [ohms] 4
Maximum SPL [dB] 112
Recommended Amplifier Power [W] 50 - 400
Crossover Frequency [Hz] 850 / 4,000
High frequency driver, Quantity 1 x 28 mm
High frequency driver, Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 1 x 5.25" / 1 x 12"
Low frequency driver, Diaphragm type Wood Fibre Cone
Enclosure type Open back
Recommended Working Volume 50 - 100 L
Connection Input Single Wire
Recommended Placement In-Wall
In-Ceiling
Dimensions (HxWxD) [mm] 471 x 471 x 170
Cut-Out Dimensions (HxWxD) [mm] 445 x 445
Accessories Included 3mm Allen Key
Cut-Out Template
Logo Badge
Manual
Weight [kg] 9.00
