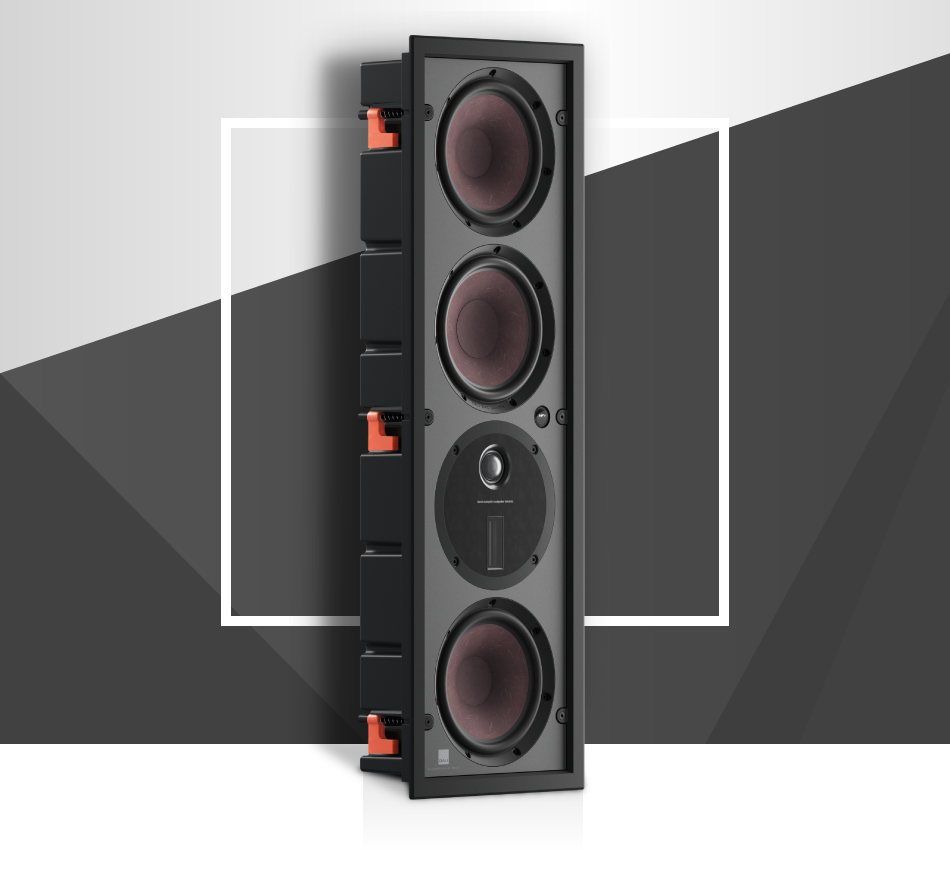

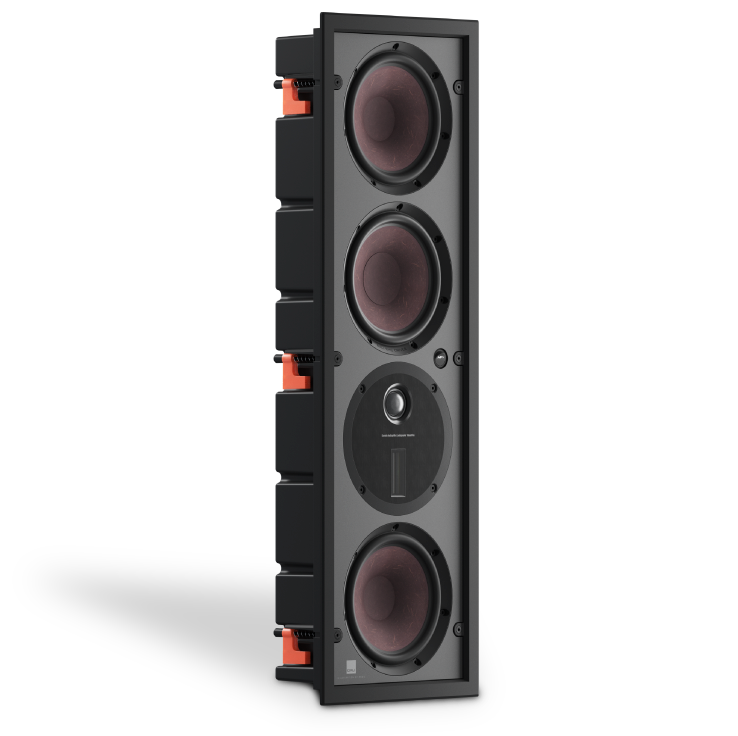

DALI M-375

DALI PHANTOM M-375 SPECS

Product series PHANTOM
Frequency Range (+/-3 dB) [Hz] 57 - 25,000
Sensitivity (2,83 V/1 m) [dB] 89.0
Nominal Impedance [ohms] 6
Maximum SPL [dB] 107
Recommended Amplifier Power [W] 30 - 180
Crossover Frequency [Hz] 2,500 / 15,000
Hybrid tweeter module, Super high freq. driver, Quantity 1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type Ribbon
Hybrid tweeter module, High frequency driver, Quantity 1 x 28 mm
Hybrid tweeter module, High frequency driver Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 1 x 7"
Low frequency driver, Diaphragm type Wood Fibre Cone
Low frequency passive driver, Quantity 2 x 7"
Low frequency passive driver, Diaphragm type Wood Fibre Cone
Enclosure type Passive Radiator Box (2 x 7" Slave)
Connection Input Single Wire
Magnetic Shielding No
Recommended Placement Centre / Soundbar
In-Wall
On-Wall
Dimensions (HxWxD) [mm] 775 x 250 x 106
Cut-Out Dimensions (HxWxD) [mm] 751 x 226 x 100
Accessories Included Manual
Cut-Out Template
3 mm Allen Bit
Weight [kg] 8.7
