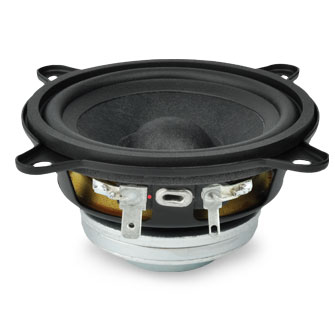

ALTOPARLANTE FAITAL 3FE22

NOMINAL SPECIFICATIONS
Nominal Diameter    80 mm (3 in)
Overall Diameter    105.6/81 mm (4.16/3.19 in)
Bolt Circle Diameter    92 mm (3.62 in)
Baffle Cutout Diameter    73.6 mm (2.90 in)
Depth    46 mm (1.55 in)
Flange and Gasket Thickness    6.5 mm (0.26 in)
Net Weight    240 g (0.53 lb)
Shipping Box
(Single Carton Box - 36 units)    285x285x255 mm
(11.22x11.22x10.04 in)
Shipping Weight (36 units)    10 Kg (22.05 lb)
TECHNICAL PARAMETERS
Nominal Impedance    8 Ohm
Minimum Impedance    6.7 Ohm
AES Power Handling (1)    20 W
Maximum Power Handling (2)    40 W
Sensitivity (1W/1m)    91 dB
Frequency Range    100÷20000 Hz
Voice Coil Diameter    19 mm (0.75 in)
Winding Material    Al
Former Material    Kapton
Winding Depth    5 mm (0.2 in)
Magnetic Gap Depth    4 mm (0.16 in)
Flux Density    1.4 T
Magnet    Neodymium Ring
Basket Material    Steel
Demodulation    No
Cone Surround (3)    Half Roll
NET Air Volume filled by Loudspeaker    0.060 dm^3 (0.002 ft^3)
Spider Profile    1x constant height wavesTHIELE AND SMALL PARAMETERS
Fs    110 Hz
Re    6.2 Ohm
Qes    0.5
Qms    5
Qts    0.47
Vas    1.10 dm^3 (0.04 ft^3)
Sd    30.2 cm^2 (4.68 in^2)
Xmax (4)    1.83 mm
Xdamage (5)    7.3 mm
Mms    2.5 g
Bl    4.5 N/A
Le    0.15 mH
Mmd    2.38 g
Cms    0.85 mm/N
Rms    0.35 Kg/s
Eta Zero    0.28 %
EBP    220 Hz
