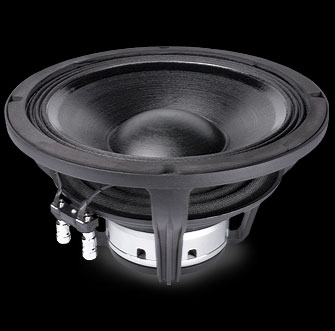

ALTOPARLANTE FAITAL 10FH520

THIELE & SMALL PARAMETERSFs     72 Hz
Re     5.1 Ohm
Qes     0.37
Qms     2.4
Qts     0.32
Vas     15.7 dm^3 (0.55 ft^3)
Sd     327 cm^2 (50.7 in^2)
Xmax *     7 mm
Xdamage **     19.5 mm
Mms     47 g
Bl     17.4 N/A
Le     0.76 mH
Mmd     43.6 g
Cms     0.1 mm/N
Rms     8.86 Kg/s
Eta Zero     1.6 %
EBP     200 hz


NOMINAL SPECIFICATIONS

Nominal Diameter     250 mm (10 in)
Overall Diameter     261 mm (10.28 in)
Bolt Circle Diameter     246 mm (9.69 in)
Baffle Cutout Diameter     232 mm (9.13 in)
Depth     141.3 mm (5.56 in)
Flange and Gasket Thickness     12.5 mm (0.49 in)
Net Weight     3.4 Kg (7.5 lb)
Shipping Box
(Single Carton Box)     305x305x185 mm (12x12x7.28 in)
Shipping Weight     4 Kg (8.8 lb)
      ELETRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.3 Ohm
Nominal Power Handling ***     600 W
Maximum Power Handling ****     1200 W
Sensitivity (1W/1m)     97 dB
Frequency Range     70÷4000 Hz
Voice Coil Diameter     77 mm (3 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     18 mm (0.71 in)
Magnetic Gap Depth     12 mm (0.47 in)
Flux Density     1.1 T
