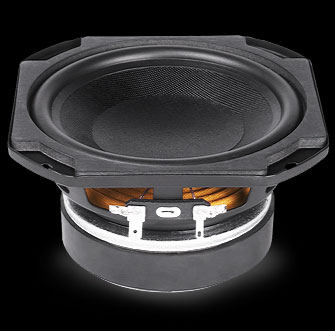

ALTOPARLANTE FAITAL 5FE100

THIELE & SMALL PARAMETERSFs     65 Hz
Re     5.4 Ohm
Qes     0.47
Qms     8.18
Qts     0.44
Vas     3.66 dm^3 (0.13 ft^3)
Sd     74.9 cm^2 (11.6 in^2)
Xmax *     5.25 mm
Xdamage **     9.5 mm
Mms     10.5 g
Bl     6.9 N/A
Le     0.53 mH
Mmd     10.1 g
Cms     0.46 mm/N
Rms     0.57 Kg/s
Eta Zero     0.30 %
EBP     138 Hz


NOMINAL SPECIFICATIONS


Nominal Diameter     130 mm (5 in)
Overall Diameter     144.8/124.5 mm (5.7/4.9 in)
Bolt Circle Diameter     133 mm (5.24 in)
Baffle Cutout Diameter     114 mm (4.49 in)
Depth     65 mm (2.56 in)
Flange and Gasket Thickness     6.5 mm (0.25 in)
Net Weight     1.12 Kg (2.47 lb)
Shipping Box
(Single Carton Box - 8 units)     302x275x186 mm (11.88x10.82x7.3 in)
Shipping Weight (8 units)     10.1 Kg (22.2 lb)
       ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.3 Ohm
Nominal Power Handling ***     80 W
Maximum Power Handling ****     160 W
Sensitivity (1W/1m)     88 dB
Frequency Range     65÷6300 Hz
Voice Coil Diameter     32 mm (1.26 in)
Winding Material     Cu
Former Material     Kapton
Winding Depth     12.5 mm (0.49 in)
Magnetic Gap Depth     6 mm (0.24 in)
Flux Density     1 T
