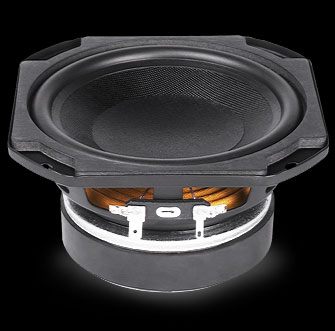

ALTOPARLANTE FAITAL 5FE120

THIELE & SMALL PARAMETERSFs     65 HzRe     5.4 OhmQes     0.46Qms     7.35Qts     0.43Vas     3.6 dm^3 (0.12 ft^3)Sd     74.9 cm^2 (11.6 in^2)Xmax *     5.25 mmXdamage **     9.5 mmMms     11 gBl     6.9 N/ALe     0.41 mHMmd     10.9 gCms     0.46 mm/NRms     0.7 Kg/sEta Zero     0.27 %EBP     141 Hz      NOMINAL SPECIFICATIONSNominal Diameter     130 mm (5 in)Overall Diameter     144.8/124.5 mm (5.7/4.9 in)Bolt Circle Diameter     133 mm (5.24 in)Baffle Cutout Diameter     114 mm (4.49 in)Depth     65 mm (2.56 in)Flange and Gasket Thickness     6.5 mm (0.25 in)Net Weight     1.13 Kg (2.48 lb)Shipping Box (Single Carton Box - 8 units)     302x275x186 mm (11.88x10.82x7.3 in)Shipping Weight (8 units)     10.2 Kg (22.44 lb)     ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.2 Ohm
Nominal Power Handling ***     80 W
Maximum Power Handling ****     160 W
Sensitivity (1W/1m)     88 dB
Frequency Range     63÷6300 Hz
Voice Coil Diameter     32 mm (1.26 in)
Winding Material     Cu
Former Material     Kapton
Winding Depth     12.5 mm (0.49 in)
Magnetic Gap Depth     6 mm (0.24 in)
Flux Density     1 T
