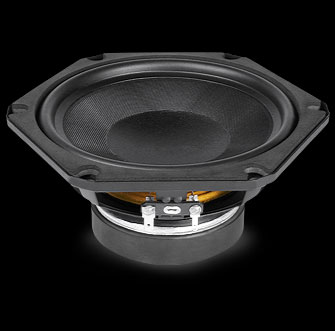

ALTOPARLANTE FAITAL 6FE100

THIELE & SMALL PARAMETERS
Fs     61 Hz
Re     5.4 Ohm
Qes     0.6
Qms     6
Qts     0.54
Vas     14.8 dm^3 (0.52 ft^3)
Sd     137 cm^2 (21.23 in^2)
Xmax *     5.25 mm
Xdamage **     13.15 mm
Mms     14 g
Bl     6.8 N/A
Le     0.5 mH
Mmd     13 g
Cms     0.56 mm/N
Rms     0.84 Kg/s
Eta Zero     0.46 %
EBP     102 Hz


NOMINAL SPECIFICATIONS


Nominal Diameter     160 mm (6 in)
Overall Diameter     181.2/164 mm (7.13/6.46 in)
Bolt Circle Diameter     167 mm (6.57 in)
Baffle Cutout Diameter     147 mm (5.79 in)
Depth     84.5 mm (3.33 in)
Flange and Gasket Thickness     8 mm (0.31 in)
Net Weight     1.2 Kg (2.64 lb)
Shipping Box
(Single Carton Box - 4 units)     380x393x128 mm (14.9x15.47x5.03 in)
Shipping Weight (4 units)     5.6 Kg (13.82 lb)

ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     5.9 Ohm
Nominal Power Handling ***     100 W
Maximum Power Handling ****     200 W
Sensitivity (1W/1m)     91 dB
Frequency Range     63÷5000 Hz
Voice Coil Diameter     32 mm (1.26 in)
Winding Material     Cu
Former Material     Kapton
Winding Depth     12.5 mm (0.49 in)
Magnetic Gap Depth     6 mm (0.24 in)
Flux Density     1 T
