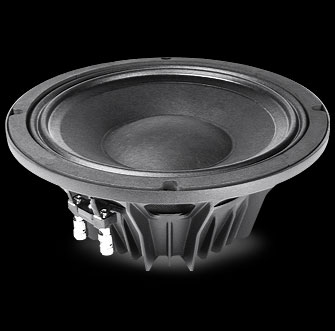

ALTOPARLANTE FAITAL 10PR300

THIELE & SMALL PARAMETERSFs     60 Hz
Re     5.4 Ohm
Qes     0.28
Qms     5.81
Qts     0.26
Vas     38.4 dm^3 (1.35 ft^3)
Sd     320 cm^2 (49.6 in^2)
Xmax *     4.92 mm
Xdamage **     14 mm
Mms     28.2 g
Bl     14.1 N/A
Le     0.6 mH
Mmd     24.9 g
Cms     0.25 mm/N
Rms     1.77 Kg/s
Eta Zero     2.62 %
EBP     214 Hz
  NOMINAL SPECIFICATIONS

Nominal Diameter     250 mm (10 in)
Overall Diameter     261 mm (10.28 in)
Bolt Circle Diameter     246 mm (9.69 in)
Baffle Cutout Diameter     232 mm (9.13 in)
Depth     115.3 mm (4.54 in)
Flange and Gasket Thickness     12.2 mm (0.48 in)
Net Weight     2.1 Kg (4.62 lb)
Shipping Box
(Single Carton Box)     305x305x185 mm (12x12x7.28 in)
Shipping Weight     2.8 Kg (6.16 lb)

ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.4 Ohm
Nominal Power Handling ***     300 W
Maximum Power Handling ****     600 W
Sensitivity (1W/1m)     98 dB
Frequency Range     60÷5000 Hz
Voice Coil Diameter     65 mm (2.5 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     12.5 mm (0.49 in)
Magnetic Gap Depth     8 mm (0.31 in)
Flux Density     1.25 T

Variante 16ohm non disponibile
