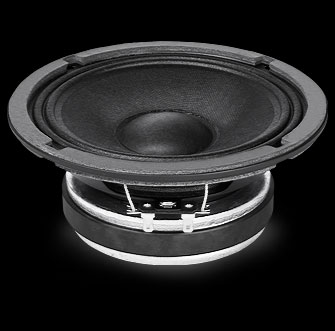

ALTOPARLANTE FAITAL 6FE200

THIELE & SMALL PARAMETERSFs     120 Hz
Re     5.9 Ohm
Qes     0.5
Qms     7.3
Qts     0.47
Vas     3.56 dm^3 (0.13 ft^3)
Sd     118 cm^2 (18.29 in^2)
Xmax *     4.67 mm
Xdamage **     10.4 mm
Mms     11 g
Bl     8.2 N/A
Le     0.4 mH
Mmd     9.5 g
Cms     0.18 mm/N
Rms     1 Kg/s
Eta Zero     1 %
EBP     240 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     160 mm (6 in)
Overall Diameter     167.4 mm (6.59 in)
Bolt Circle Diameter     154 mm (6.06 in)
Baffle Cutout Diameter     144 mm (5.67 in)
Depth     77 mm (3 in)
Flange and Gasket Thickness     8 mm (0.31 in)
Net Weight     2 Kg (4.41 lb)
Shipping Box
(Single Carton Box)     103x190x185 mm (4.06x7.48x7.28 in)
Shipping Weight     2.6 Kg (5.73 lb)ELECTRICAL SPECIFICATIONS


Nominal Impedance     8 Ohm
Minimum Impedance     6.8 Ohm
Nominal Power Handling ***     130 W
Maximum Power Handling ****     260 W
Sensitivity (1W/1m)     95 dB
Frequency Range     85÷6000 Hz
Voice Coil Diameter     37 mm (1.46 in)
Winding Material     Al
Former Material     Kapton
Winding Depth     12 mm (0.47 in)
Magnetic Gap Depth     8 mm (0.31 in)
Flux Density     1 T
