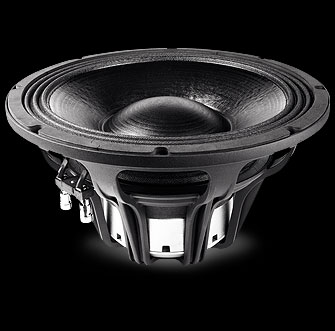

ALTOPARLANTE FAITAL 12HP1060

THIELE & SMALL PARAMETERSFs     45 HzRe     5 OhmQes     0.29Qms     12.1Qts     0.28Vas     30.08 dm^3 (1.09 ft^3)Sd     469 cm^2 (72.7 in^2)Xmax *     12.45 mmXdamage **     21 mmMms     126.9 gBl     24.8 N/ALe     1.38 mHMmd     121.1 gCms     0.098 mm/NRms     2.96 Kg/sEta Zero     0.93 %EBP     155 Hz
NOMINAL SPECIFICATIONS
Nominal Diameter     300 mm (12 in)
Overall Diameter     316 mm (12.44 in)
Bolt Circle Diameter     298.5 mm (11.75 in)
Baffle Cutout Diameter     282 mm (11.10 in)
Depth     169 mm (6.65 in)
Flange and Gasket Thickness     12.5 mm (0.49 in)
Net Weight     6.6 Kg (14.55 lb)
Shipping Box
(Single Carton Box)     350x346x216 mm (13.78x13.62x8.50 in)
Shipping Weight     7.3 Kg (16.09 lb)
      ELECTRICAL SPCIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.5 Ohm
Nominal Power Handling ***     1000 W
Maximum Power Handling ****     2000 W
Sensitivity (1W/1m)     95 dB
Frequency Range     45÷2500 Hz
Voice Coil Diameter     100 mm (4 in)
Winding Material     Cu
Former Material     Glass Fiber
Winding Depth     28.9 mm (1.14 in)
Magnetic Gap Depth     12 mm (0.47 in)
Flux Density     1.22 T
