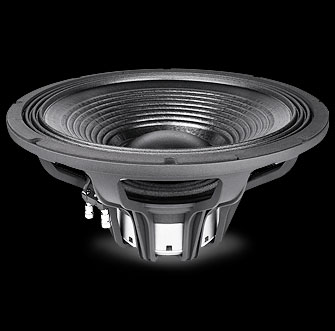

ALTOPARLANTE FAITAL 15HP1060

THIELE & SMALL PARAMETERS
Fs     40 Hz
Re     5 Ohm
Qes     0.32
Qms     11.4
Qts     0.31
Vas     87.5 dm^3 (3.09 ft^3)
Sd     780 cm^2 (120.9 in^2)
Xmax *     12.45 mm
Xdamage **     21 mm
Mms     156.3 g
Bl     24.8 N/A
Le     1.32 mH
Mmd     143.9 g
Cms     0.1 mm/N
Rms     3.44 Kg/s
Eta Zero     1.7 %
EBP     125 Hz

NOMINAL SPECIFICATIONS

Nominal Diameter     380 mm (15 in)
Overall Diameter     393 mm (15.47 in)
Bolt Circle Diameter     374 mm (14.72 in)
Baffle Cutout Diameter     354 mm (13.94 in)
Depth     194.3 mm (7.65 in)
Flange and Gasket Thickness     13.7 mm (0.54 in)
Net Weight     7.1 Kg (15.65 lb)
Shipping Box
(Single Carton Box)     430x427x236 mm (16.93x16.81x9.29 in)
Shipping Weight     8.4 Kg (18.52 lb)

ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.4 Ohm
Nominal Power Handling ***     1000 W
Maximum Power Handling ****     2000 W
Sensitivity (1W/1m)     97 dB
Frequency Range     40÷2000 Hz
Voice Coil Diameter     100 mm (4 in)
Winding Material     Cu
Former Material     Glass Fiber
Winding Depth     28.9 mm (1.14 in)
Magnetic Gap Depth     12 mm (0.47 in)
Flux Density     1.22 T
