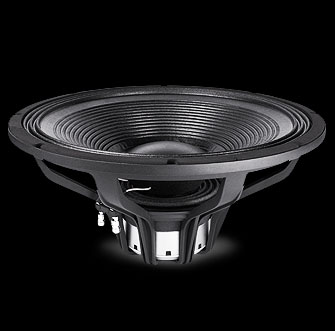

ALTOPARLANTE FAITAL 18HP1060

THIELE & SMALL PARAMETERS

Fs     35 Hz
Re     5 Ohm
Qes     0.38
Qms     11.1
Qts     0.37
Vas     190.8 dm^3 (6.74 ft^3)
Sd     1174 cm^2 (181.97 in^2)
Xmax *     12.45 mm
Xdamage **     21 mm
Mms     211.8 g
Bl     24.8 N/A
Le     1.26 mH
Mmd     189.1 g
Cms     0.098 mm/N
Rms     4.19 Kg/s
Eta Zero     2.1 %
EBP     92 Hz


NOMINAL SPECIFICATIONS


Nominal Diameter     460 mm (18 in)
Overall Diameter     460 mm (18.11 in)
Bolt Circle Diameter     440 mm (17.32 in)
Baffle Cutout Diameter     422 mm (16.61 in)
Depth     194.3 mm (7.65 in)
Flange and Gasket Thickness     13.9 mm (0.55 in)
Net Weight     7.3 Kg (16.09 lb)
Shipping Box
(Single Carton Box)     503x500x258 mm (19.80x19.68x10.16 in)
Shipping Weight     8.7 Kg (19.18 lb)
      ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.3 Ohm
Nominal Power Handling ***     1200 W
Maximum Power Handling ****     2400 W
Sensitivity (1W/1m)     98 dB
Frequency Range     35÷1600 Hz
Voice Coil Diameter     100 mm (4 in)
Winding Material     Cu
Former Material     Glass Fiber
Winding Depth     28.9 mm (1.14 in)
Magnetic Gap Depth     12 mm (0.47 in)
Flux Density     1.22 T
