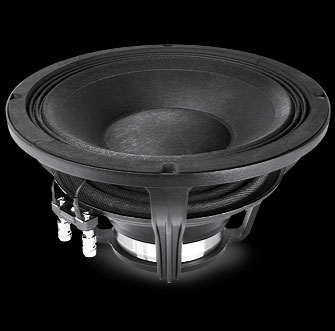

ALTOPARLANTE FAITAL 10FH500

THIELE & SMALL PARAMETERSFs     60 Hz
Re     5.1 Ohm
Qes     0.28
Qms     3.28
Qts     0.26
Vas     21.6 dm^3 (0.76 ft^3)
Sd     319 cm^2 (49.4 in^2)
Xmax *     7.25 mm
Xdamage **     12.5 mm
Mms     47 g
Bl     17.9 N/A
Le     0.85 mH
Mmd     44.8 g
Cms     0.15 mm/N
Rms     5.4 Kg/s
Eta Zero     1.6 %
EBP     214 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     250 mm (10 in)
Overall Diameter     261 mm (10.28 in)
Bolt Circle Diameter     246 mm (9.69 in)
Baffle Cutout Diameter     232 mm (9.13 in)
Depth     141.3 mm (5.56 in)
Flange and Gasket Thickness     12.5 mm (0.49 in)
Net Weight     3.4 Kg (7.5 lb)
Shipping Box
(Single Carton Box)     305x305x185 mm (12x12x7.28 in)
Shipping Weight     4 Kg (8.8 lb)
ELECTRICAL SPECIFICATIONS
Nominal Impedance     8 Ohm
Minimum Impedance     6.4 Ohm
Nominal Power Handling ***     500 W
Maximum Power Handling ****     1000 W
Sensitivity (1W/1m)     96 dB
Frequency Range     60÷4000 Hz
Voice Coil Diameter     77 mm (3 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     18 mm (0.71 in)
Magnetic Gap Depth     10.5 mm (0.41 in)
Flux Density     1.2 T
