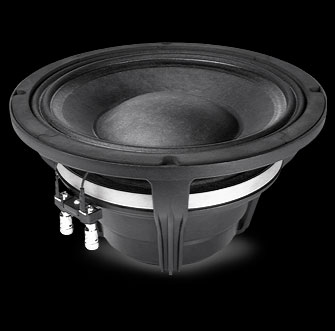

ALTOPARLANTE FAITAL 10HP1020 8ohm

THIELE & SMALL PARAMETERSFs     60 Hz
Re     5.5 Ohm
Qes     0.22
Qms     6.01
Qts     0.23
Vas     15.65 dm^3 (0.55 ft^3)
Sd     339 cm^2 (52.5 in^2)
Xmax *     9 mm
Xdamage **     12.5 mm
Mms     72.5 g
Bl     25.7 N/A
Le     0.85 mH
Mmd     69 g
Cms     0.096 mm/N
Rms     4.58 Kg/s
Eta Zero     1.46 %
EBP     273 Hz
      NOMINAL SPECIFICATIONS

Nominal Diameter     250 mm (10 in)
Overall Diameter     261 mm (10.28 in)
Bolt Circle Diameter     246 mm (9.69 in)
Baffle Cutout Diameter     230 mm (9.06 in)
Depth     141.3 mm (5.56 in)
Flange and Gasket Thickness     12.5 mm (0.49 in)
Net Weight     5.2 Kg (11.44 lb)
Shipping Box
(Single Carton Box)     305x305x185 mm (12x12x7.28 in)
Shipping Weight     5.8 Kg (12.76 lb) ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     7.3 Ohm
Nominal Power Handling ***     700 W
Maximum Power Handling ****     1400 W
Sensitivity (1W/1m)     96 dB
Frequency Range     60÷4000 Hz
Voice Coil Diameter     100 mm (4 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     22 mm (0.87 in)
Magnetic Gap Depth     12 mm (0.47 in)
Flux Density     1.3 T
