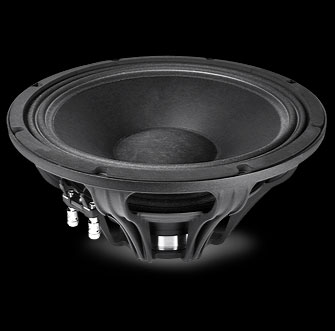

ALTOPARLANTE FAITAL 12FH500

THIELE & SMALL PARAMETERSFs     45 Hz
Re     5.1 Ohm
Qes     0.26
Qms     6.90
Qts     0.25
Vas     76.2 dm^3 (2.69 ft^3)
Sd     490.4 cm^2 (76 in^2)
Xmax *     7.25 mm
Xdamage **     16 mm
Mms     56 g
Bl     17.5 N/A
Le     0.83 mH
Mmd     50 g
Cms     0.22 mm/N
Rms     3.24 Kg/s
Eta Zero     2.5 %
EBP     173 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     300 mm (12 in)
Overall Diameter     316 mm (12.44 in)
Bolt Circle Diameter     298.5 mm (11.75 in)
Baffle Cutout Diameter     284 mm (11.18 in)
Depth     155.75 mm (6.13 in)
Flange and Gasket Thickness     12.45 mm (0.49 in)
Net Weight     4 Kg (8.8 lb)
Shipping Box
(Single Carton Box)     350x350x200 mm (13.8x13.8x7.9 in)
Shipping Weight     4.6 Kg (10.1 lb)

 ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.4 Ohm
Nominal Power Handling ***     500 W
Maximum Power Handling ****     1000 W
Sensitivity (1W/1m)     97 dB
Frequency Range     45÷4000 Hz
Voice Coil Diameter     77 mm (3 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     18 mm (0.71 in)
Magnetic Gap Depth     10.5 mm (0.41 in)
Flux Density     1.2 T
