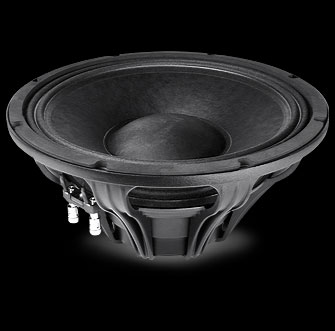

ALTOPARLANTE FAITAL 12HP1020

THIELE & SMALL PARAMETERS


Fs     55 Hz
Re     5.5 Ohm
Qes     0.28
Qms     8.24
Qts     0.27
Vas     37.4 dm^3 (1.32 ft^3)
Sd     520 cm^2 (80.6 in^2)
Xmax *     9.5 mm
Xdamage **     16 mm
Mms     86 g
Bl     24.3 N/A
Le     1.1 mH
Mmd     79.3 g
Cms     0.09 mm/N
Rms     3.61 Kg/s
Eta Zero     2.18 %
EBP     196 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     300 mm (12 in)
Overall Diameter     316 mm (12.44 in)
Bolt Circle Diameter     298.5 mm (11.75 in)
Baffle Cutout Diameter     282.5 mm (11.12 in)
Depth     155.75 mm (6.13 in)
Flange and Gasket Thickness     12.45 mm (0.49 in)
Net Weight     5.6 Kg (12.32 lb)
Shipping Box
(Single Carton Box)     350x350x200 mm (13.8x13.8x7.9 in)
Shipping Weight     6.2 Kg (13.64 lb)
      ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     7.1 Ohm
Nominal Power Handling ***     700 W
Maximum Power Handling ****     1400 W
Sensitivity (1W/1m)     98 dB
Frequency Range     55÷3150 Hz
Voice Coil Diameter     100 mm (4 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     23 mm (0.9 in)
Magnetic Gap Depth     12 mm (0.47 in)
Flux Density     1.3 T
