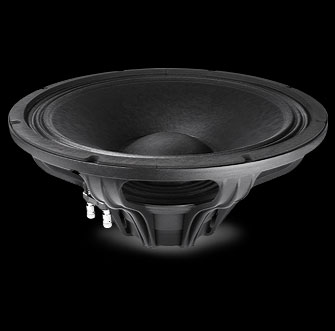

ALTOPARLANTE FAITAL 15HP1020

THIELE & SMALL PARAMETERSFs     40 Hz
Re     5.5 Ohm
Qes     0.28
Qms     10.20
Qts     0.27
Vas     109 dm^3 (3.85 ft^3)
Sd     756.2 cm^2 (117.2 in^2)
Xmax *     9.5 mm
Xdamage **     16 mm
Mms     118 g
Bl     24.2 N/A
Le     1.2 mH
Mmd     106.2 g
Cms     0.13 mm/N
Rms     2.69 Kg/s
Eta Zero     2.43 %
EBP     143 Hz


NOMINAL SPECIFICATIONS


Nominal Diameter     380 mm (15 in)
Overall Diameter     393 mm (15.47 in)
Bolt Circle Diameter     374 mm (14.72 in)
Baffle Cutout Diameter     354 mm (13.94 in)
Depth     181.3 mm (7.14 in)
Flange and Gasket Thickness     13.7 mm (0.54 in)
Net Weight     5.9 Kg (13 lb)
Shipping Box
(Single Carton Box)     426x429x225 mm (16.8x16.9x8.9 in)
Shipping Weight     6.5 Kg (14.3 lb)

ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.9 Ohm
Nominal Power Handling ***     700 W
Maximum Power Handling ****     1400 W
Sensitivity (1W/1m)     99 dB
Frequency Range     40÷3150 Hz
Voice Coil Diameter     100 mm (4 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     23 mm (0.9 in)
Magnetic Gap Depth     12 mm (0.47 in)
Flux Density     1.3 T
