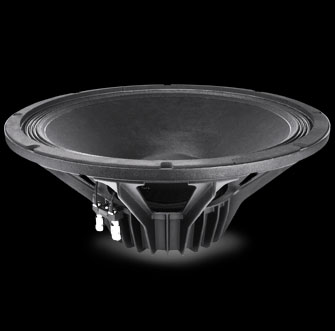

ALTOPARLANTE FAITAL 15PR400

THIELE & SMALL PARAMETERSFs     32 Hz
Re     5.1 Ohm
Qes     0.31
Qms     6.02
Qts     0.30
Vas     267.2 dm^3 (9.44 ft^3)
Sd     805.5 cm^2 (124.8 in^2)
Xmax *     5.75 mm
Xdamage **     15.5 mm
Mms     85.2 g
Bl     16.7 N/A
Le     0.75 mH
Mmd     72.5 g
Cms     0.29 mm/N
Rms     2.85 Kg/s
Eta Zero     2.68 %
EBP     103 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     380 mm (15 in)
Overall Diameter     393 mm (15.47 in)
Bolt Circle Diameter     374 mm (14.72 in)
Baffle Cutout Diameter     356 mm (14 in)
Depth     164.7 mm (6.48 in)
Flange and Gasket Thickness     13.1 mm (0.52 in)
Net Weight     3.6 Kg (7.92 lb)
Shipping Box
(Single Carton Box)     426x429x225 mm (16.8x16.9x8.9 in)
Shipping Weight     4.7 Kg (10.34 lb)

ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     5.9 Ohm
Nominal Power Handling ***     400 W
Maximum Power Handling ****     800 W
Sensitivity (1W/1m)     100 dB
Frequency Range     35÷4000 Hz
Voice Coil Diameter     77 mm (3 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     15 mm (0.59 in)
Magnetic Gap Depth     10.5 mm (0.41 in)
Flux Density     1.15 T
