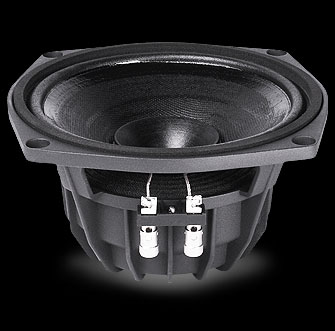

ALTOPARLANTE FAITAL 6PR150

NOMINAL SPECIFICATIONS

Nominal Diameter     160 mm (6 in)
Overall Diameter     186.5/162 mm (7.34/6.37 in)
Bolt Circle Diameter     172 mm (6.77 in)
Baffle Cutout Diameter     147 mm (5.78 in)
Depth     87.2 mm (3.43 in)
Flange and Gasket Thickness     7.5 mm (0.29 in)
Net Weight     1.4 Kg (3.08 lb)
Shipping Box
(Single Carton Box)     195x195x141 mm (7.68x7.68x5.55 in)
Shipping Weight     1.6 Kg (3.52 lb)

ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.6 Ohm
Nominal Power Handling ***     150 W
Maximum Power Handling ****     300 W
Sensitivity (1W/1m)     97 dB
Frequency Range     100÷5000 Hz
Voice Coil Diameter     52 mm (2 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     6.6 mm (0.26 in)
Magnetic Gap Depth     6 mm (0.24 in)
Flux Density     1.35 TTHIELE & SMALL PARAMETERS
Fs     100 Hz
Re     5.5 Ohm
Qes     0.35
Qms     8.80
Qts     0.33
Vas     5.80 dm^3 (0.20 ft^3)
Sd     147.8 cm^2 (5.82 in^2)
Xmax *     2.3 mm
Xdamage **     11.6 mm
Mms     13.5 g
Bl     11.6 N/A
Le     0.28 mH
Mmd     12.7 g
Cms     0.19 mm/N
Rms     0.96 Kg/s
Eta Zero     1.63 %
EBP     285 Hz
