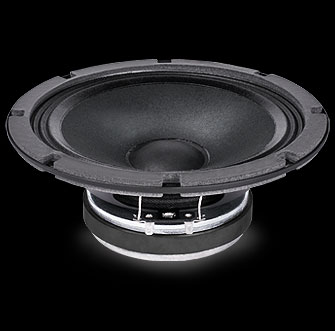

ALTOPARLANTE FAITAL 8FE200

THIELE & SMALL PARAMETERS
Fs     80 Hz
Re     5.9 Ohm
Qes     0.4
Qms     13
Qts     0.4
Vas     18.6 dm^3 (0.66 ft^3)
Sd     190.5 cm^2 (29.53 in^2)
Xmax *     4.67 mm
Xdamage **     10.4 mm
Mms     15 g
Bl     8.2 N/A
Le     0.44 mH
Mmd     13.5 g
Cms     0.36 mm/N
Rms     0.5 Kg/s
Eta Zero     1.3 %
EBP     200 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     200 mm (8 in)
Overall Diameter     209.2 mm (8.24 in)
Bolt Circle Diameter     196.9 mm (7.75 in)
Baffle Cutout Diameter     178 mm (7.01 in)
Depth     89 mm (3.50 in)
Flange and Gasket Thickness     8 mm (0.31 in)
Net Weight     2.15 Kg (4.74 lb)
Shipping Box
(Single Carton Box)     116x231x235 mm (4.57x9.09x9.25 in)
Shipping Weight     2.4 Kg (5.29 lb)

 ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.8 Ohm
Nominal Power Handling ***     130 W
Maximum Power Handling ****     260 W
Sensitivity (1W/1m)     95 dB
Frequency Range     60÷5000 Hz
Voice Coil Diameter     37 mm (1.46 in)
Winding Material     Al
Former Material     Kapton
Winding Depth     12 mm (0.47 in)
Magnetic Gap Depth     8 mm (0.31 in)
Flux Density     1 T


Versione 4ohm non disponibile
