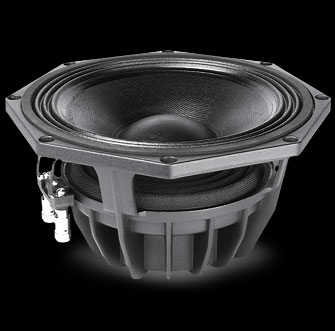

ALTOPARLANTE FAITAL 8PR200

THIELE & SMALL PARAMETERSFs     58 Hz
Re     5.1 Ohm
Qes     0.34
Qms     9.4
Qts     0.35
Vas     17.6 dm^3 (0.62 ft^3)
Sd     199 cm^2 (30.8 in^2)
Xmax *     8.15 mm
Xdamage **     13.5 mm
Mms     24 g
Bl     11.3 N/A
Le     0.55 mH
Mmd     22.4 g
Cms     0.31 mm/N
Rms     0.93 Kg/s
Eta Zero     1.02 %
EBP     148 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     200 mm (8 in)
Overall Diameter     223.8/203.9 mm (8.81/8.18 in)
Bolt Circle Diameter     210 mm (8.27 in)
Baffle Cutout Diameter     184 mm (7.24 in)
Depth     116.7 mm (4.59 in)
Flange and Gasket Thickness     10.7 mm (0.42 in)
Net Weight     2.1 Kg (4.63 lb)
Shipping Box
(Single Carton Box)     235x235x155 mm (9.25x9.25x6.1 in)
Shipping Weight     2.5 Kg (5.51 lb)
      ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6.4 Ohm
Nominal Power Handling ***     200 W
Maximum Power Handling ****     400 W
Sensitivity (1W/1m)     95 dB
Frequency Range     60÷5000 Hz
Voice Coil Diameter     52 mm (2 in)
Winding Material     Al
Former Material     Glass Fiber
Winding Depth     19.3 mm (0.76 in)
Magnetic Gap Depth     9 mm (0.35 in)
Flux Density     1.15 T
