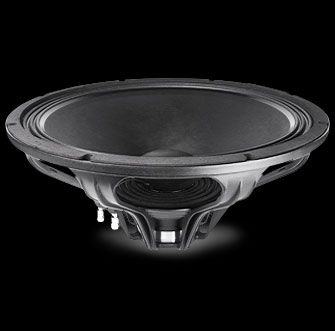

ALTOPARLANTI FAITAL 18FH500

THIELE & SMALL PARAMETERSFs     30 Hz
Re     5.1 Ohm
Qes     0.34
Qms     8.68
Qts     0.33
Vas     404.2 dm^3 (14.27 ft^3)
Sd     1166 cm^2 (180.7 in^2)
Xmax *     9.25 mm
Xdamage **     17.5 mm
Mms     134.3 g
Bl     19.5 N/A
Le     1.35 mH
Mmd     112.6 g
Cms     0.21 mm/N
Rms     2.91 Kg/s
Eta Zero     3.1 %
EBP     88 Hz


NOMINAL SPECIFICATIONS

Nominal Diameter     460 mm (18 in)
Overall Diameter     460 mm (18.11 in)
Bolt Circle Diameter     440 mm (17.32 in)
Baffle Cutout Diameter     424 mm (16.7 in)
Depth     202 mm (7.95 in)
Flange and Gasket Thickness     13.9 mm (0.55 in)
Net Weight     4.7 Kg (10.4 lb)
Shipping Box
(Single Carton Box)     536x536x293 mm (21.1x21.1x11.5 in)
Shipping Weight     6 Kg (13.2 lb)

ELECTRICAL SPECIFICATIONS

Nominal Impedance     8 Ohm
Minimum Impedance     6 Ohm
Nominal Power Handling ***     600 W
Maximum Power Handling ****     1200 W
Sensitivity (1W/1m)     99 dB
Frequency Range     30÷3150 Hz
Voice Coil Diameter     77 mm (3 in)
Winding Material     Cu
Former Material     Glass Fiber
Winding Depth     22 mm (0.87 in)
Magnetic Gap Depth     10.5 mm (0.41 in)
Flux Density     1.2 T
